Air-Side HVAC Efficiency in Malaysian Buildings

The air side is where comfort and fan energy are won or lost

Chiller plants get the efficiency attention because they are the biggest single load. But the air side — the air handling units, supply and return fans, ducts, dampers, filters, and the air face of the cooling coils — decides whether all that cold water actually turns into comfort, and it runs a fan energy bill of its own around the clock. In a Malaysian building, where fans push humid outdoor air through coils every hour the building is occupied, air-side performance is not a detail. It is half the HVAC system.

Air-side efficiency means delivering the right amount of conditioned air, at the right temperature and humidity, for the least fan energy. Get it wrong and you pay three times: in fan power, in chiller energy spent cooling air you did not need to move, and in comfort complaints that push operators to overcool the whole building to satisfy one hot zone.

Why the air side matters more in Malaysia

Our climate loads the air side in a specific way. Outdoor air is hot and very humid, so a large share of the cooling a Malaysian AHU does is latent — wringing moisture out of the air, not just dropping its temperature. Fresh air brought in for ventilation carries that humidity straight to the coil. Move more outdoor air than the space needs and you hand the chiller a latent load it never had to take. Humidity that sneaks in through duct leaks or infiltration does the same thing, and it forces the coil to work harder for less useful cooling — a pattern we have traced and fixed on real building automation projects.

The levers that decide air-side efficiency

Fan energy and the affinity laws. Fan power rises with roughly the cube of speed, so small reductions in airflow return large energy savings. Variable-speed fans that follow demand, rather than running flat-out against a throttling damper, are usually the highest-return air-side measure. The flip side: anything that makes a fan work harder for the same air — high static pressure, restrictions, leaks — is expensive.

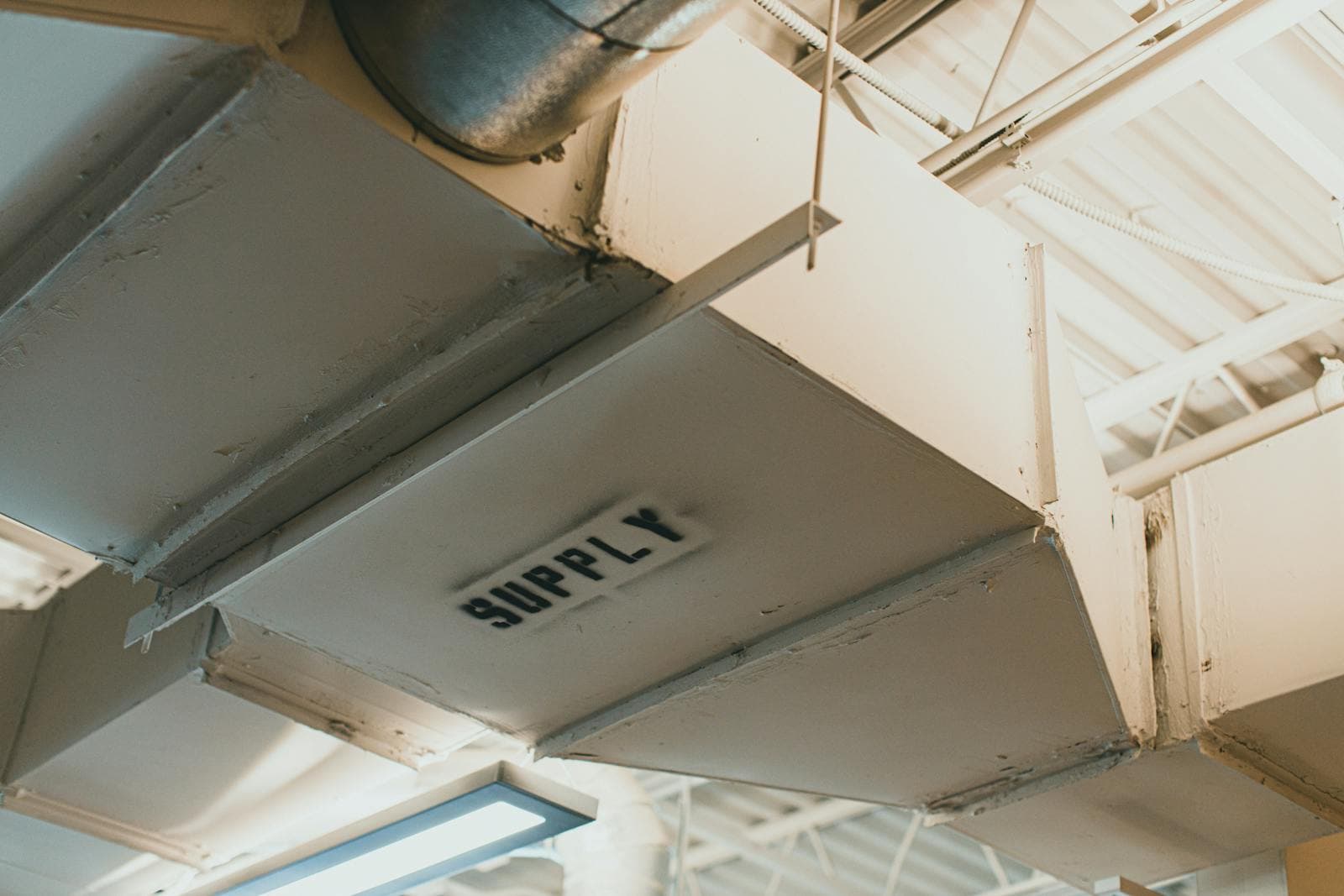

Static pressure and duct leakage. Every pascal of unnecessary static pressure is fan energy. Ducts that leak waste the air the fan already paid to move and pressurise the wrong spaces, and leaks on the return or fresh-air path can pull in unconditioned humid air that lands as latent load on the coil. Resetting duct static pressure to the lowest value that still satisfies the zones, and sealing leakage, both cut fan kW directly.

Over-designed AHUs. Plant is often sized for a peak that rarely arrives, so AHUs spend their lives at part load. An oversized unit can run its variable-speed drive at a low speed yet still fight high system static, so the drive never delivers the savings it should and the coil sees airflow it was not selected for. Matching control to the real operating range — not the nameplate — recovers the efficiency the oversizing gave away.

Filters. A loaded filter raises pressure drop and fan energy steadily until it is changed. Condition-based filter management, driven by measured pressure drop rather than a fixed calendar, keeps fans efficient without changing filters that still have life.

Supply air temperature and reheat. Overcooling the air and then reheating it to avoid a cold zone burns energy twice. Resetting supply air temperature against actual zone demand, and eliminating simultaneous heating and cooling, removes a waste that is common and easy to miss.

Demand-controlled ventilation. Bringing in fresh air on a fixed schedule means over-ventilating whenever the space is lightly occupied — and in Malaysia, every excess cubic metre of outdoor air is a latent load. CO2-based demand-controlled ventilation supplies the fresh air the occupancy actually needs and stops there.

Fan coil units: the distributed air side

Not every building conditions air through large central AHUs. Hotels, offices, hospitals, and residential towers across Malaysia run on fan coil units — dozens or hundreds of small units, one or more per room or zone, each with its own fan, coil, filter, and control valve. The air-side principles still hold, but the scale and the failure modes change.

The first FCU-specific lever is the fan motor. Many FCUs ship with three-speed fans that run at a fixed speed regardless of load, so they cannot trim airflow the way a variable-speed AHU fan can. Retrofitting EC (electronically commutated) motors lets even a small unit modulate to the room's actual demand and recovers part-load fan energy across a fleet that runs most of the day.

The second lever links the air side straight back to the chiller plant: the control valve. FCUs are very often fitted with three-way valves that bypass chilled water around the coil at part load — a leading cause of the low chilled water delta-T that drives plant kW/RT up. With hundreds of units bypassing at once, the effect on the plant is large, and converting to two-way valves on a variable-flow system is one of the highest-value retrofits in an FCU building.

The third is simply visibility. One AHU is easy to watch; six hundred FCUs are not. Units run on after hours, filters foul, valves stick, and condensate trouble raises humidity — none of it obvious without per-zone data. Monitoring the FCU fleet through an energy and operations platform surfaces the units wasting energy or failing to cool, so maintenance goes where it is needed instead of room by room.

The air side and the water side are one system

Air-side and water-side performance are linked, which is why fixing one in isolation disappoints. The supply air temperature the AHU holds influences how much heat the coil returns to the water, and so feeds straight into chilled water delta-T and ultimately plant kW/RT. An AHU that overcools with too much flow can collapse delta-T at the coil; a well-run air side helps the chiller plant hold its efficiency. Treating the building as one connected system — air and water, controlled together — is what separates a tuned plant from a collection of tuned parts. We go deeper on the equipment side in HVAC optimization for Malaysian buildings.

You cannot tune what you do not measure

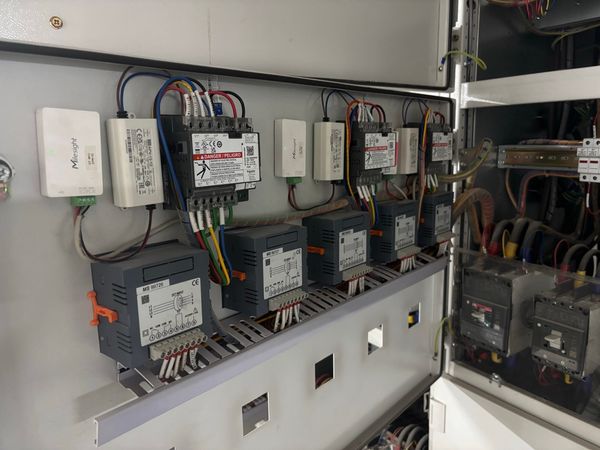

Air-side waste hides well: a leaking duct, a drifting static pressure setpoint, an AHU reheating against itself. None of it shows on a walk-round, and all of it shows on the bill. CobiNeural monitors fan energy, airflow, static pressure, and zone conditions alongside the chiller plant, so air-side drift surfaces as a number rather than a comfort complaint, and the control sequences hold the gains. Real deployments across commercial buildings and plants are in our case studies. To find where your air side is losing energy and comfort, request an assessment.
