How Solar Panels Make Electricity: No Spinning Needed

An applied extra to Cobler's Electricity Fundamentals course.

Drive past any industrial park in Shah Alam or Penang and every second factory roof now wears the same dark blue skin: rows of solar panels, baking in the sun, dead silent. You have seen a thousand of them. You have almost certainly never heard anyone explain how solar panels make electricity, and here is the strange part. This whole course has told you that nearly every kilowatt-hour Malaysia burns begins as something physically turning: a shaft, a turbine, a magnet swept past a coil. Solar is the one mainstream exception. A panel has no shaft, no magnet, no moving part of any kind. It just sits there in the light and pushes out current. This is the article that completes the story.

How do solar panels make electricity? Light knocks an electron loose

A particle of light hits silicon, knocks one electron free, and a built-in one-way slope inside the panel sweeps that freed electron out through your wiring. That is the entire trick, and once you see it, the silence of a solar roof stops being mysterious.

Start with the electron. Earlier we said a current is just loose electrons drifting through a metal, a shared sea of charge that shuffles along when you push it. Silicon is not a metal. It is a semiconductor, and in a plain sheet of silicon the electrons are mostly locked in place, no free sea to speak of. A solar cell's job is to knock some of them loose and then herd them in one direction. It does both at once.

A cell is a sandwich of two silicon layers, doped so that one side has a slight surplus of loose electrons and the other a slight shortage. Where the two meet, they set up a permanent internal slope, a one-way electric gradient frozen into the material. This is the same one-way semiconductor behaviour that makes diodes act as electrical turnstiles. The junction is built once, at the factory, and never moves again.

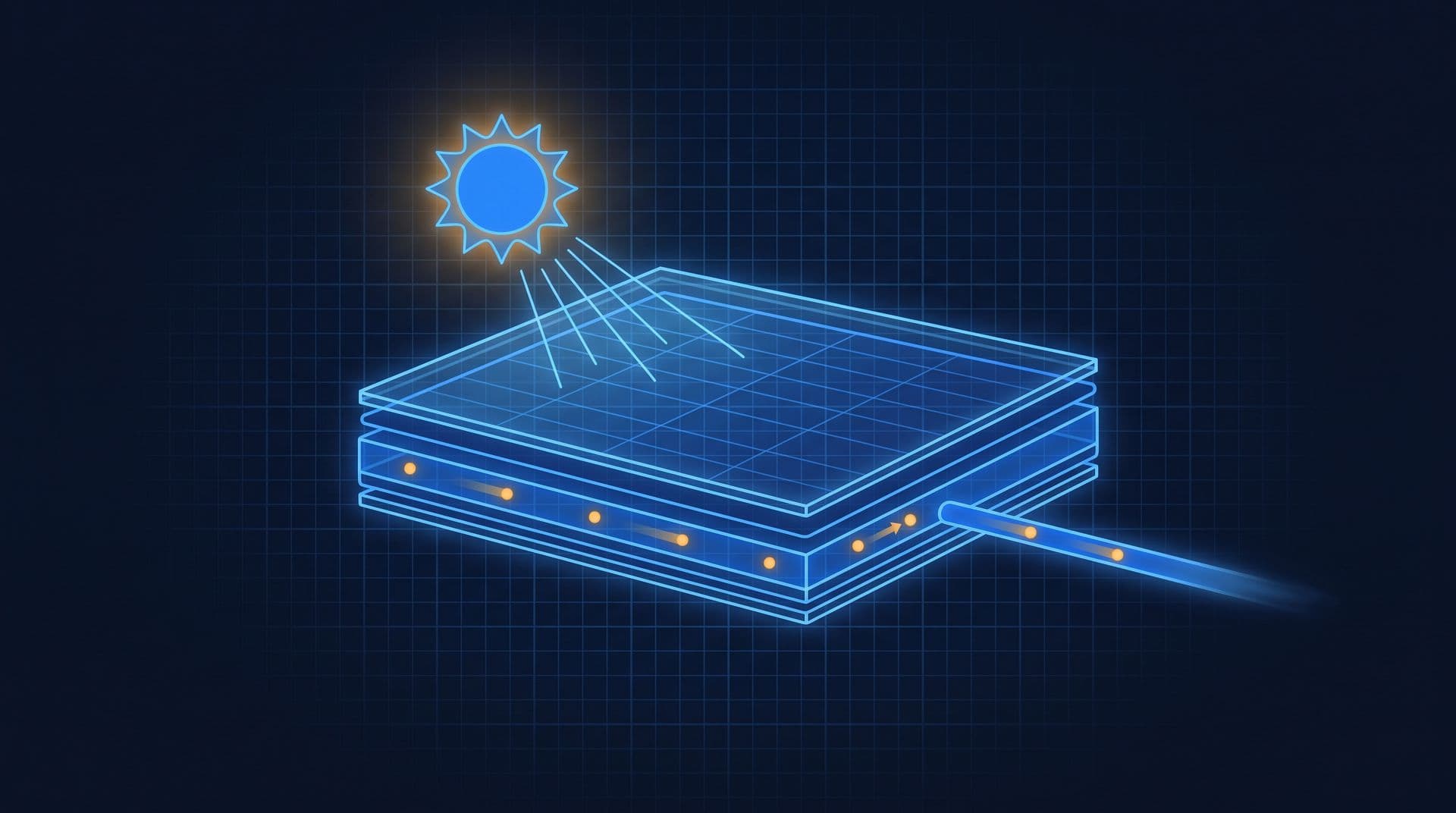

Now add sunlight. Light arrives in packets called photons. When a photon of the right energy strikes a silicon atom, it hands over its energy and knocks a single electron loose, freeing it to move (PVEducation). On its own that electron would just wander and settle back down. But it was freed right next to that built-in slope, and the slope only lets it roll one way: out through the fine metal fingers on the top of the cell, through your wiring where it does useful work, and back in through the contact on the underside. Photon in, electron out, circuit complete. Multiply that by the trillions of photons landing every second and you have a steady current, with nothing anywhere having moved but the electrons themselves.

Why is a solar panel's output DC and not AC?

Because that internal slope always pushes the freed electrons the same way, so the current only ever flows in one direction. That is direct current, DC, by definition.

The contrast with how generators make electricity is the whole point. A generator sweeps a magnet past a coil, and because the magnet's north and south poles come round in turn, the push on the electrons reverses twice per rotation. The result is alternating current, a smooth wave that flips direction a hundred times a second. AC is simply what rotation looks like read off a coil. Solar has no rotation to reverse anything, so the push never flips. The panel produces a flat, one-way DC output and nothing else.

This is exactly why a rooftop system is never just panels. The building runs on AC, the grid speaks AC, but your panels speak DC. Something has to translate, and that something is the inverter, which chops the panels' DC into a clean 50 Hz AC wave the building can actually use. No moving parts on the roof, no moving parts in the inverter either: just silicon doing the work that a spinning machine used to do.

What do Wp and kWp on a panel actually mean?

Every quote you will ever get leads with a number like 500 Wp, and it is the one figure on the sheet that will not happen on your roof. Wp stands for watt-peak: a lab benchmark, not a promise. A panel rated at 500 Wp will produce 500 watts under Standard Test Conditions: 1000 watts of light per square metre, a cell temperature of exactly 25 degrees, and a defined spectrum. Those conditions let you compare two panels fairly. They are not the conditions on your roof at 2pm.

What matters to an owner is the daily yield. In Malaysia, a rooftop system delivers roughly 3.5 to 4.5 kWh per day for every kWp installed, which works out to somewhere around 1,300 to 1,600 kWh per kWp over a year (SolarSunYield; Global Solar Atlas). So a 10 kWp array on a typical factory roof might make 35 to 45 kWh on a good day. During the northeast monsoon between November and March, expect that to fall 20 to 30 percent as the skies stay grey. The yield figure already bakes in the real-world losses, which is why it sits below the raw peak rating: a panel almost never runs at its nameplate Wp for long.

Why does a scorching afternoon hurt a solar panel?

Here is the fact that surprises everyone in a hot country: heat is bad for a panel. A blazing, cloudless afternoon is often not a panel's best hour, and a bright but cooler mid-morning can beat it.

Every panel has a negative temperature coefficient of power, typically around -0.3 to -0.5 percent for every degree above the 25-degree test reference (EnergySage). A dark panel bolted to a Malaysian roof can easily reach 60 to 65 degrees in full sun, and at that temperature it loses roughly 15 to 20 percent of its rated output. The reason is physical: heat mostly drops the cell's voltage, and hotter silicon lets some of those freed electrons recombine and settle back down before the slope can sweep them out. Fewer electrons collected means less power.

So sunlight and heat pull in opposite directions. The light is what frees the electrons, and you want as much of it as possible. The heat that comes with it is a tax on the output. Bright and cool beats blazing and baking, every time.

Do solar panels stop working on a cloudy day?

No. Clouds dim a panel, they do not switch it off. Cloud cover scatters sunlight rather than blocking it completely, and that scattered, diffuse light still reaches the roof and still knocks electrons loose, just fewer of them. A panel under heavy overcast keeps generating at a reduced fraction of its clear-sky output, which is exactly why a Malaysian system carries on producing through the monsoon, only at that 20 to 30 percent lower rate. An overcast day is a quiet day for the meter, not a dead one.

What this means when you are quoted for a system

Notice what is missing from everything above: bearings, oil, belts, a shaft that wears. The generation itself has no moving parts, which is why a solar array is close to maintenance-free once it is up. The panels degrade slowly over decades, the inverter is the part most likely to need replacing, and the main upkeep is keeping the glass reasonably clean. That is a genuinely different machine from a diesel genset that needs servicing every few hundred hours.

The physics being clean does not make the purchase automatic, though. Whether solar pays on your specific roof depends on your tariff, your daytime load, the current export scheme, and the shading and orientation of the site. That business case is a separate question from the physics, and one Cobler's other solar articles take up directly. What you now know is the part almost no one on those industrial roofs could explain: light lands, an electron is knocked loose, a one-way slope sweeps it into your wiring, and a silent sheet of glass makes power with nothing turning at all.

Go deeper on video

Reading explains; watching sometimes lands the picture. Full credit to the creators:

This is an applied extra to Cobler's Electricity Fundamentals course. It sits closest to rectifiers and inverters, the machine that turns your panels' DC into the AC your building runs on, and to how generators make electricity, the spinning cousin solar quietly does without.
