Inverter Aircon: What That Sticker Buys You

An applied extra to Cobler's Electricity Fundamentals course.

You have stood in the shop and had this exact moment. Two aircon units on the wall, same brand, same 1.5 HP, near enough the same box. One is a few hundred ringgit more, and the only visible difference is a word stamped on the panel: INVERTER. The salesman says the inverter aircon "saves electricity." You ask how, and you get a shrug, or the same three words again. So you either pay the premium on faith or skip it out of spite, and either way you walk out not knowing what that inverter aircon sticker actually bought you.

The question you never got answered is small and completely answerable: what is different inside the two boxes? Not the marketing, the physics. Once you see it, the whole thing collapses into something you could explain to your neighbour in one breath.

What is actually different inside an inverter aircon?

One thing: the speed the compressor is allowed to run at.

The compressor is the heart of any aircon, a pump that squeezes refrigerant, and it is driven by an electric motor. In a non-inverter (fixed-speed) unit that motor is wired straight to the 230 V wall supply, so it has exactly one speed, flat out, and exactly one control, an on-off switch. An inverter unit puts an electronic drive between the wall and the motor, and that drive can run the compressor at any speed it likes. That is the entire difference. Everything the sticker is trying to sell you flows from it.

Why does a non-inverter aircon cost more to run?

Because its compressor only has two settings, full blast and off, so it spends the whole day slamming between them.

A fixed-speed unit runs full blast until the room drops to your setpoint, the temperature you dial in, clicks off, lets the room warm back up, then clicks on again at full blast. On, off, on, off, all day and all night. Two things about that pattern quietly cost you money.

First, every time the motor starts from a dead stop it pulls a big gulp of current, several times its running current, for a second or two. We covered why in the motors article: a stalled motor briefly looks almost like a short circuit, and that inrush is the same surge that blinks your lights the instant the fridge kicks in. A fixed-speed aircon manufactures that surge dozens of times a day.

Second, because it can only cool at 100% or 0%, the room temperature saws up and down past your setpoint instead of sitting flat, and every overshoot is cooling you paid for and did not need. And while the compressor is off, nothing is wringing moisture out of the air, so between cycles a humid Malaysian room turns clammy even when the number on the wall looks right.

Why does modulation save electricity?

Because a motor sipping steadily at 30% is far cheaper to run than one gulping between 0 and 100% all day.

An inverter unit puts a variable frequency drive in front of the compressor. It is the same rectifier-and-inverter pair that runs rooftop solar and EVs, shrunk down and bolted inside a wall appliance: it turns the mains AC into DC, then rebuilds AC at whatever frequency it chooses, and the motor's speed follows that frequency. Feed it 25 Hz instead of 50 and the compressor turns at half speed. So instead of two settings, the unit has a whole dial.

It blasts to pull the room down fast (inverter units even overclock past 100% on a Turbo mode, so they cool quicker than a fixed-speed unit, not slower), then, once the room is at temperature, it throttles right down and idles at low speed, matching its output to the trickle of heat leaking in through the walls.

That continuous low-speed running is where the money is. It never pays the repeated inrush, because it stops starting and stopping. It never overshoots, because it eases off instead of switching off. The compressor's own motor, a brushless DC type on modern inverters, holds its efficiency down at low speed, and the refrigeration itself gets more efficient there too: with less heat to shift, the coils are oversized for the job, so each unit of cooling costs less to produce than when the compressor is straining flat out. And because the coil stays cold continuously, the unit keeps dehumidifying, so the room feels drier at the same temperature.

How much does all this actually save? The defensible band is 20 to 40% less electricity than a comparable fixed-speed unit (Mitsubishi Electric). One controlled study measured an inverter using 44% less over a year, 3,471 kWh against 6,230 kWh for the fixed-speed equivalent (ResearchGate).

Two honest caveats the showroom will not mention. The savings only appear if you actually run the unit for hours; for a room you cool for twenty minutes a day, the inverter barely pays for itself. And an inverter that is too small for the room, or set too cold, is forced to run flat out anyway, at which point it behaves like a fixed-speed unit and saves you almost nothing (CoolingInsights). Correct sizing matters more than the word on the panel.

What do the stars on the yellow sticker actually measure?

Cooling delivered per unit of electricity, averaged across a whole season.

Every new aircon sold in Malaysia carries a yellow Energy Efficiency Label from Suruhanjaya Tenaga (the Energy Commission), rating it 1 to 5 stars, where 5 stars means the most cooling per watt (Recommend.my). The number behind the stars is the Cooling Seasonal Performance Factor, or CSPF: total cooling delivered over a season divided by the electricity it took to deliver it (Panasonic Malaysia). Higher CSPF, more stars. A 5-star unit uses roughly half the electricity of a 1-star unit of the same size, and the label is mandatory on residential units up to 7.1 kW of cooling, which is essentially every household split.

The bar keeps rising. From 1 January 2025 the new Energy Efficiency and Conservation Act (EECA 2024) took over, and a manufacturer now needs a Certificate of Efficiency before it can sell a model at all (United for Efficiency). Inverter technology is most of how a unit clears the higher CSPF thresholds, which is why the 4- and 5-star shelf is now almost entirely inverter models. One thing to keep straight: stars and inverter are not the same claim. Stars measure efficiency, inverter describes the mechanism. Read the CSPF number, not just the word.

Why is an aircon still sold in "horsepower"?

Because the shop is quietly pricing your cooling by the horse, two centuries after James Watt invented the unit to sell steam engines.

We told that story in full in why power is measured in watts: Watt needed to tell a mill owner how many horses his engine would replace, so he defined one horsepower as the work of one working horse. One horsepower is about 746 watts, and that same unit is what "1.5 HP" on the aircon means today. Roughly, 1 HP is about 9,000 BTU/hr of cooling, and 1.5 HP around 12,000 to 13,000 (aircondlounge). BTU per hour is just another way to measure cooling power, the same way watts measure electrical power.

Here is the trap, though. The HP number is the cooling the unit delivers, not the electricity it eats from the wall. Because the machine moves heat rather than making it, a 1.5 HP unit delivers far more cooling than the power it draws; the two are different numbers on different scales, which is exactly the power-versus-energy distinction the shop floor blurs. Size by HP against your room, then judge running cost by the stars and the inverter dial.

The payback you can do on the back of a receipt

Say the inverter unit costs RM400 more, and you run it 8 hours a night in a bedroom. A 1.5 HP unit draws very roughly 1.2 kW at full tilt, and a fixed-speed unit spends much of the night cycling and overshooting, so take the conservative 25% the inverter trims off: about 2.4 kWh less than the fixed-speed unit would have drawn over the same night. At a domestic rate of around RM0.50 per kWh (illustrative; check your own bill), that is roughly RM1.20 a night, near RM36 a month run nightly. The RM400 premium pays itself back in under a year, then keeps paying for the rest of the unit's ten-year life.

Change the inputs and the answer changes. Run it two hours a day and the payback stretches to years; run it in a living room all evening and it returns faster. The point is not the exact ringgit, it is that the premium is not faith. It is a number you can check against your own hours and your own tariff.

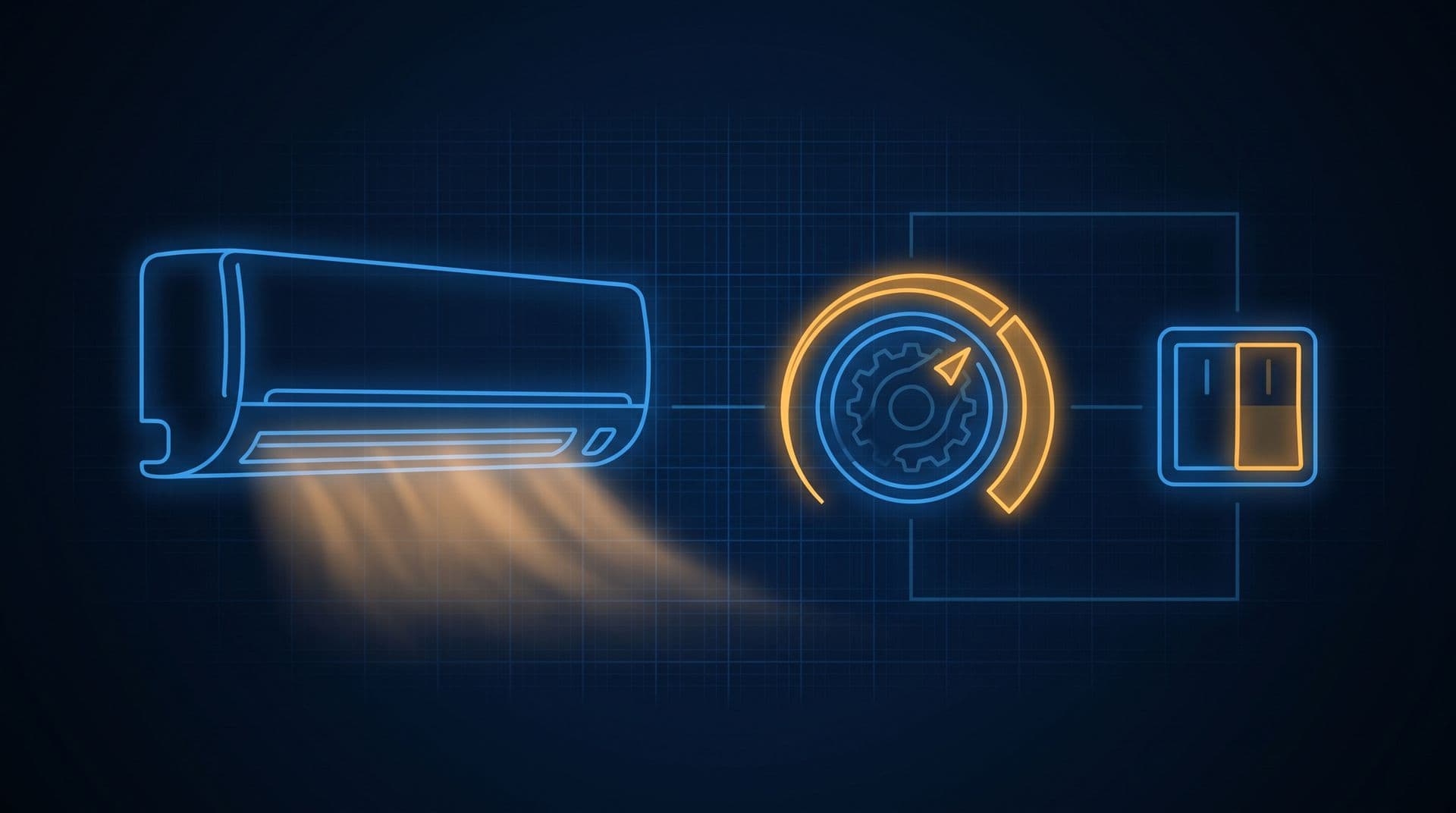

Next time you are in the shop, the INVERTER sticker stops being a mystery word. It means this box can run its compressor at any speed instead of only on and off, so it sips instead of gulps, provided you size it right and actually run it for hours. The extra few hundred ringgit buys you a dial where the cheap unit has a switch. That was it.

This is an applied extra to Cobler's Electricity Fundamentals course. The mechanism sits across two course parts: How Electric Motors Work explains the compressor and its startup inrush, and Power Electronics: Rectifiers and Inverters explains the drive that gives the inverter its dial.
